Features:
LiFePO4 battery, Safe, Longer life span
Modular design, Easy to stack, Quick installation
Larger energy capacity
Natural cooling with optional heat/fan configuration
Wide temperature range of -20~50 C
Specifications:
Nominal Energy: 3.55 kWh
Nominal Capacity: 74Ah
Nominal Voltage: 48V
Max. Continuous Discharge Current: 50 A
Max. Continuous Charge Current: 50 A
Charging Cut-off Voltage: 54V
Discharging Cut-off Voltage: 40.5V
Net weight: 30kg
Dimensions [w x d x h]: 400 x 360 x 133.5mm
Protection Level: IP20
Calendar Life: 6000 Cycles (based on 0.2C Charging/Discharging @25 degrees celsius, 80% dod)
Communication: CAN/RS485
Configuration: maximum 40 modules in parallel
Recommended C Rate: 0.5C
What's in the box

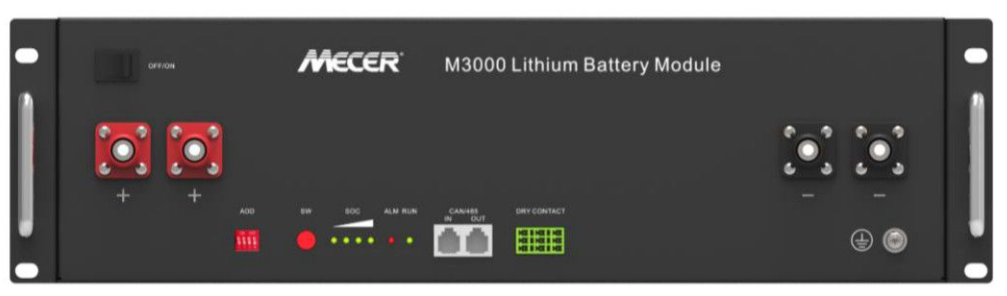

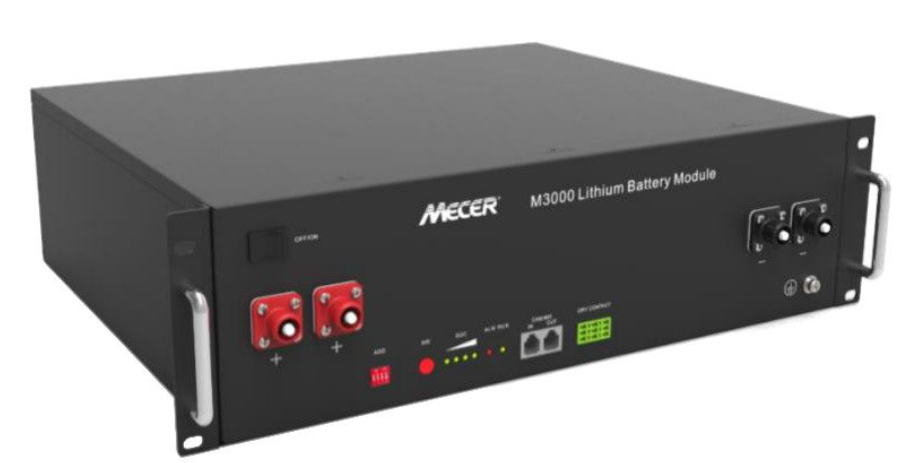

1 x Battery-M3000
1 x Power cable (red)
1 x Power cable (black)
1 x Parallel cable (red)
1 x Parallel cable (black)
1 x Communication parallel cable (RJ45 connector on both sides)
1 x Communication cable to inverter (RJ45 connector on both sides)
